Shop / Soil Pipes / Traditional LCC
  • Halifax Drain
  • Halifax Soil
  • Mech 416 Soil
  • Traditional Express TX
  • Traditional LCC
Menu
  • Halifax Drain
  • Halifax Soil
  • Mech 416 Soil
  • Traditional Express TX
  • Traditional LCC
  • CAST IRON LCC PIPE SOIL ACCESS

    LCC Pipe Soil Access

    £94.09 – £166.60 +VAT

    Premiere LCC Soil Range provides a comprehensive offering of traditional socket and spigot pipes and fittings for soil and waste installations on the external facade of buildings.

    Select options
  • Traditional Cast Iron LCC Soil Pipe Bend

    LCC Soil Pipe Bend

    £44.69 – £92.11 +VAT

    Premiere LCC Soil Range provides a comprehensive offering of traditional socket and spigot pipes and fittings for soil and waste installations on the external facade of buildings.

    Select options
  • CAST IRON LCC SOIL PIPE BOSSED

    LCC Soil Pipe Bossed 610mm o-all

    £127.59 – £214.66 +VAT

    Premiere LCC Soil Range provides a comprehensive offering of traditional socket and spigot pipes and fittings for soil and waste installations on the external facade of buildings.

    Select options
  • Cast Iron Traditional LCC Soil Pipe Branch

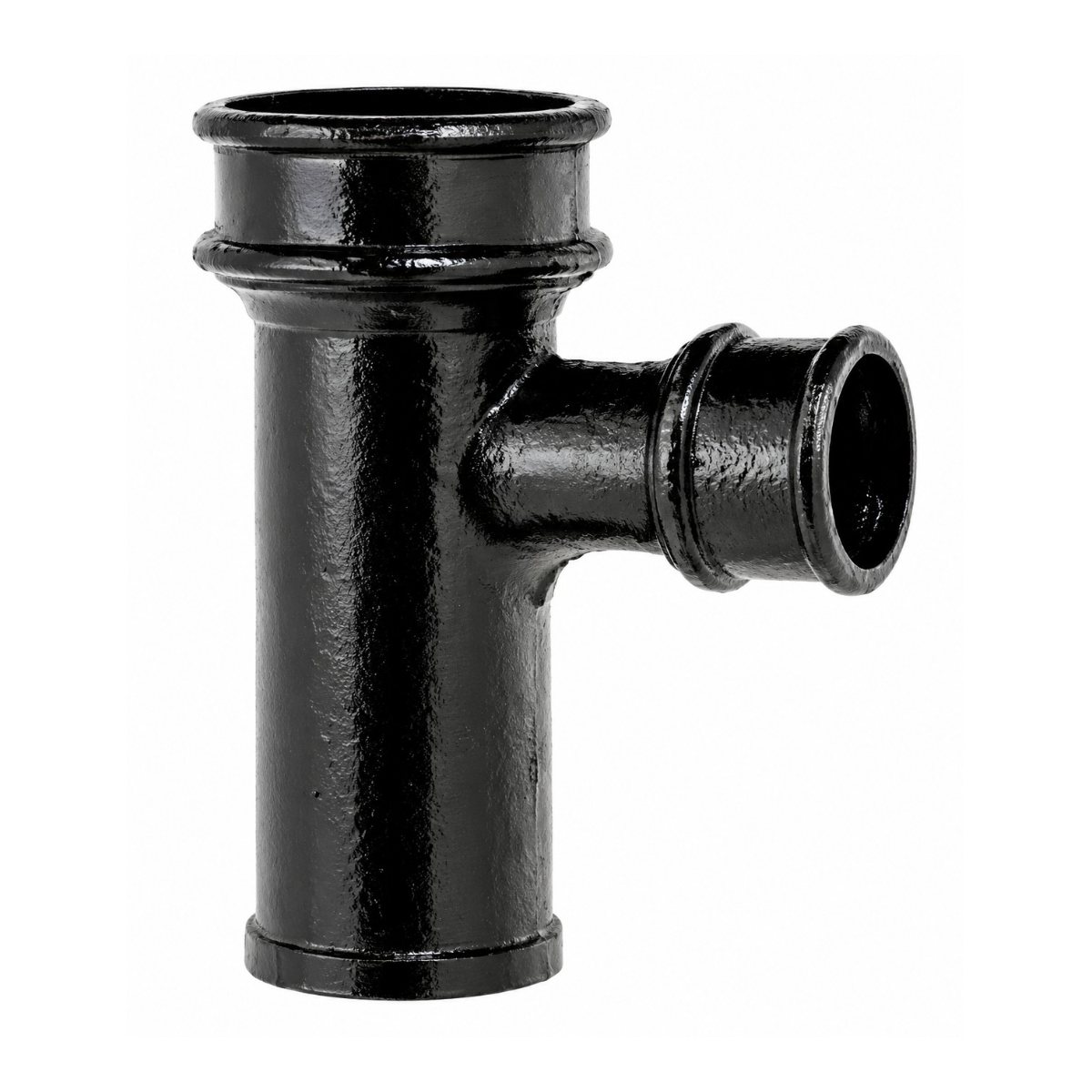

    LCC Soil Pipe Branch

    £66.85 – £184.29 +VAT

    Premiere LCC Soil Range provides a comprehensive offering of traditional socket and spigot pipes and fittings for soil and waste installations on the external facade of buildings.

    Select options
  • CAST IRON LCC SOIL PIPE DOUBLE BRANCH

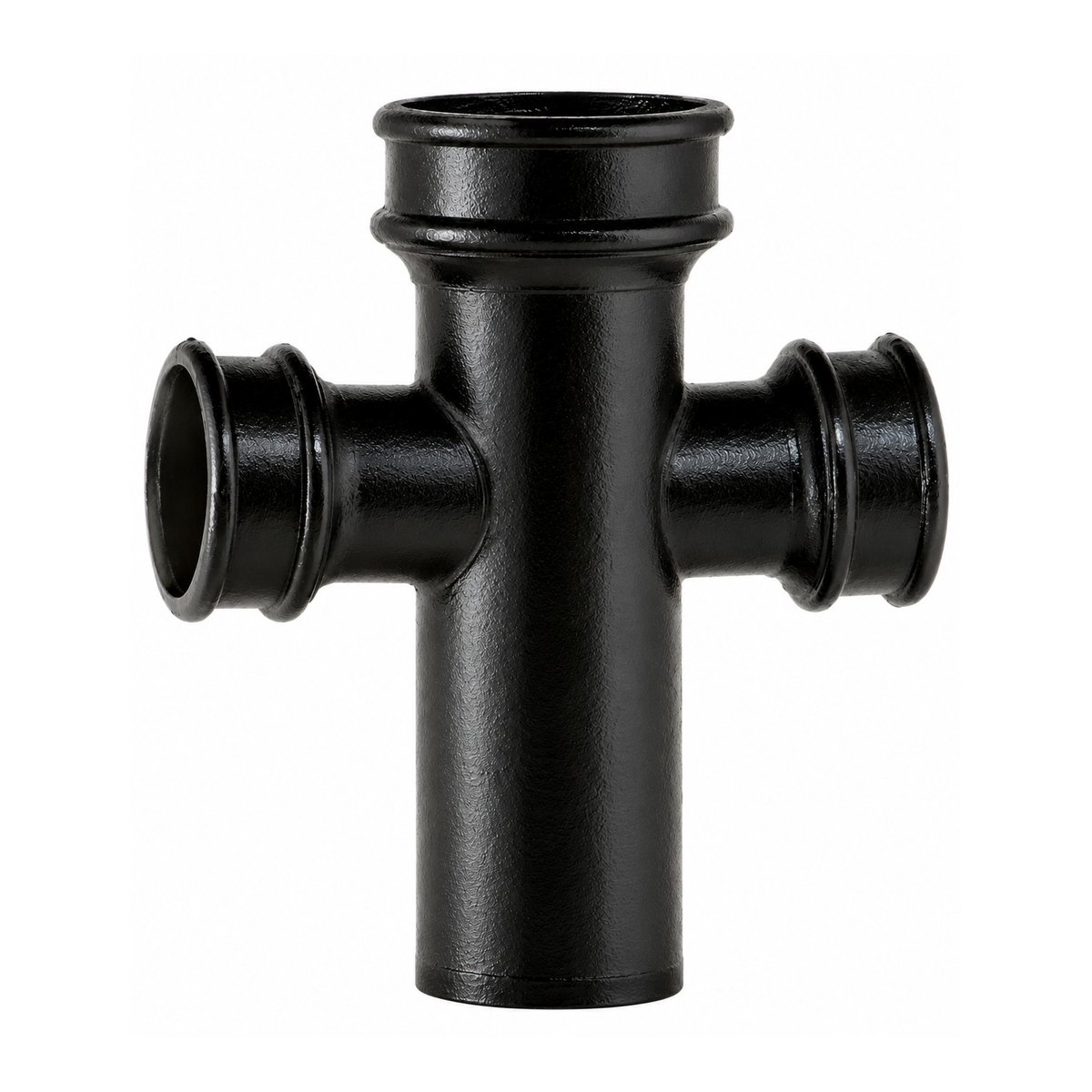

    LCC Soil Pipe Double Branch

    £136.96 – £318.76 +VAT

    Premiere LCC Soil Range provides a comprehensive offering of traditional socket and spigot pipes and fittings for soil and waste installations on the external facade of buildings.

    Select options
  • CAST IRON LCC SOIL PIPE OFFSET

    LCC Soil Pipe Offset

    £59.47 – £161.48 +VAT

    Premiere LCC Soil Range provides a comprehensive offering of traditional socket and spigot pipes and fittings for soil and waste installations on the external facade of buildings.

    Select options
  • CAST IRON LCC SOIL PIPE EARED

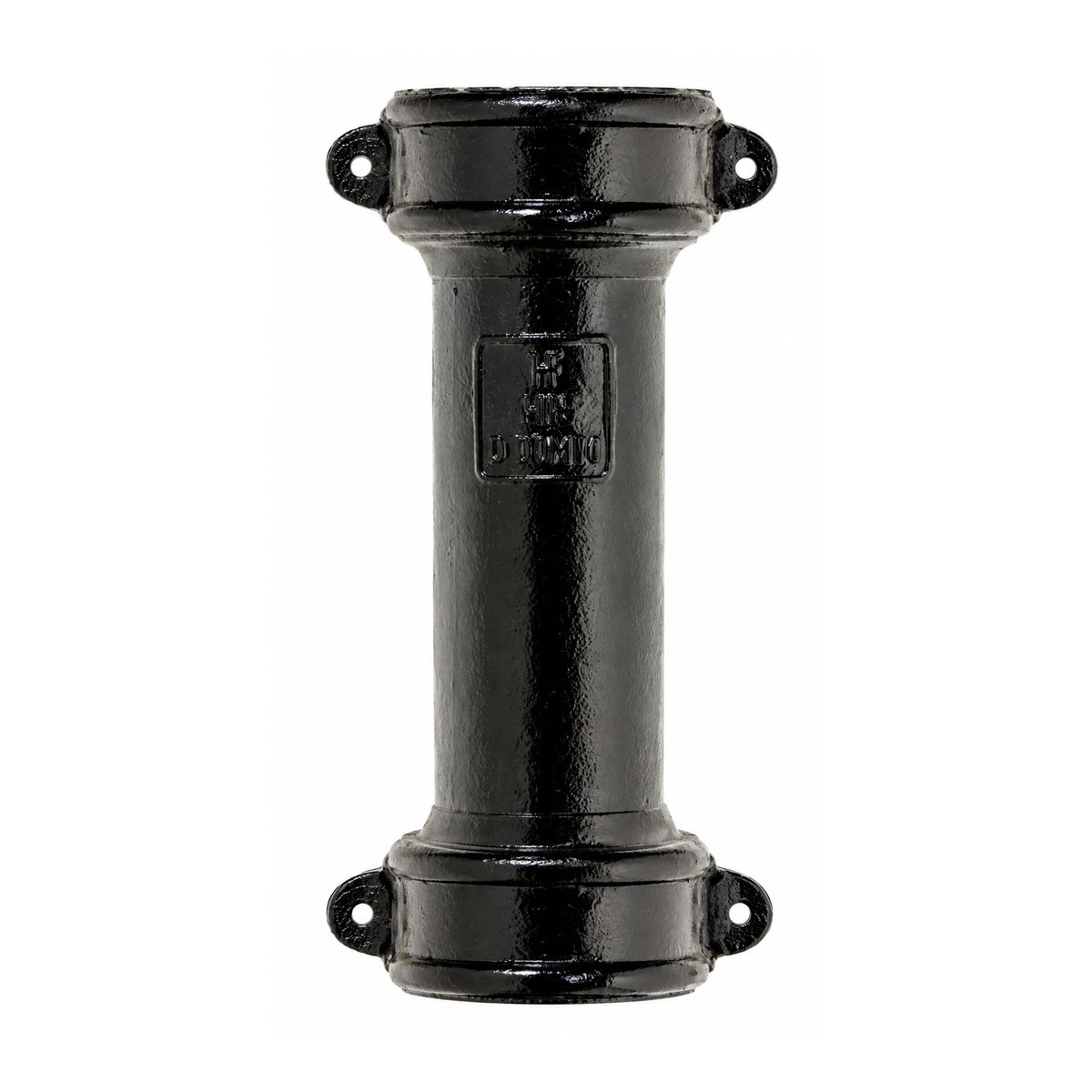

    LCC Soil Pipe Eared 1829mm

    £94.44 – £257.82 +VAT

    Premiere LCC Soil Range provides a comprehensive offering of traditional socket and spigot pipes and fittings for soil and waste installations on the external facade of buildings.

    Select options
  • CAST IRON LCC SOIL PIPE PLAIN

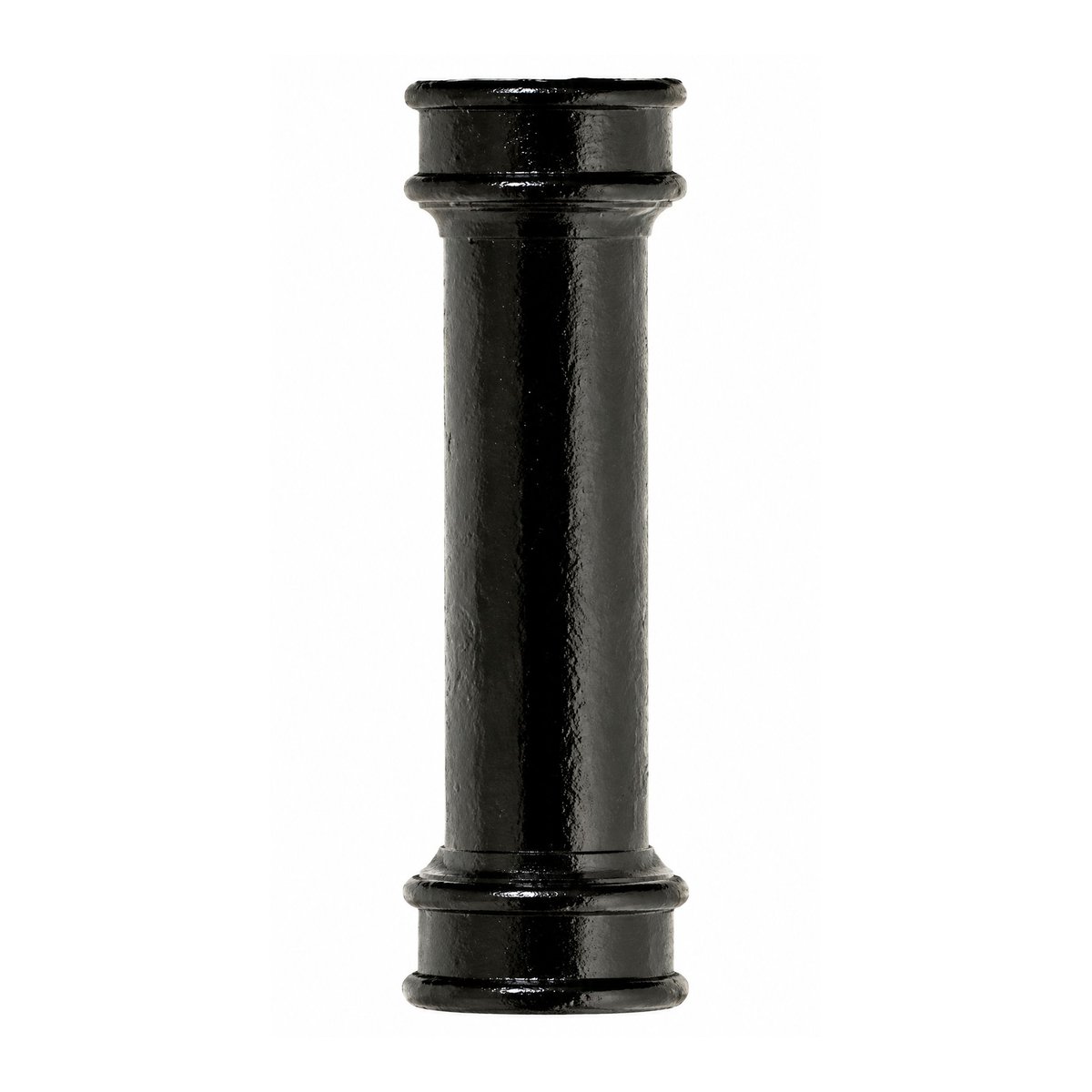

    LCC Soil Pipe Plain

    £59.29 – £208.60 +VAT

    Premiere LCC Soil Range provides a comprehensive offering of traditional socket and spigot pipes and fittings for soil and waste installations on the external facade of buildings.

    Select options
  • Cast Iron LCC Soil Pipe Bend with Door

    LCC Soil Bend with Door

    £110.66 – £181.66 +VAT

    Premiere LCC Soil Range provides a comprehensive offering of traditional socket and spigot pipes and fittings for soil and waste installations on the external facade of buildings.

    Select options
  • Cast Iron LCC Soil Pipe Equal Branch with Door

    LCC Soil Equal Branch with Door

    £108.21 – £207.59 +VAT

    Premiere LCC Soil Range provides a comprehensive offering of traditional socket and spigot pipes and fittings for soil and waste installations on the external facade of buildings.

    Select options
  • Cast Iron LCC Soil Pipe P Trap

    LCC Soil P Trap

    £85.94 – £245.35 +VAT

    Premiere LCC Soil Range provides a comprehensive offering of traditional socket and spigot pipes and fittings for soil and waste installations on the external facade of buildings.

    Select options
  • Cast Iron LCC Soil Pipe Plain Shoe

    LCC Soil Plain Shoe

    £42.08 – £110.53 +VAT

    Premiere LCC Soil Range provides a comprehensive offering of traditional socket and spigot pipes and fittings for soil and waste installations on the external facade of buildings.

    Select options
  • Cast Iron LCC Soil Pipe Eared Shoe

    LCC Soil Eared Shoe

    £56.01 – £158.11 +VAT

    Premiere LCC Soil Range provides a comprehensive offering of traditional socket and spigot pipes and fittings for soil and waste installations on the external facade of buildings.

    Select options
  • Cast Iron LCC Soil Pipe Diminishing Piece

    LCC Soil Diminishing Piece

    £79.10 – £97.52 +VAT
    Select options
  • Cast Iron LCC Soil Pipe Loose Eared Socket 100mm

    LCC Soil Loose Eared Socket 100mm

    £28.12 – £62.94 +VAT
    Select options
  • LCC Soil Pipe Plain Loose Socket

    LCC Soil Plain Loose Socket

    £25.06 – £38.12 +VAT

    Premiere LCC Soil Range provides a comprehensive offering of traditional socket and spigot pipes and fittings for soil and waste installations on the external facade of buildings.

    Select options
  • LCC Soil Pipe Blank End

    LCC Soil Blank End

    £20.69 – £54.79 +VAT

    Premiere LCC Soil Range provides a comprehensive offering of traditional socket and spigot pipes and fittings for soil and waste installations on the external facade of buildings.

    Select options
  • LCC Soil Pipe Socket Reducer

    LCC Soil Socket Reducer

    £20.93 – £27.39 +VAT

    Premiere LCC Soil Range provides a comprehensive offering of traditional socket and spigot pipes and fittings for soil and waste installations on the external facade of buildings.

    Select options
  • LCC Soil Pipe Loose Ears

    LCC Soil Loose Ears

    £21.73 – £33.80 +VAT

    Premiere LCC Soil Range provides a comprehensive offering of traditional socket and spigot pipes and fittings for soil and waste installations on the external facade of buildings.

    Select options
  • LCC Soil Pipe Cowl 100mm

    LCC Soil Cowl 100mm

    £53.08 +VAT

    Premiere LCC Soil Range provides a comprehensive offering of traditional socket and spigot pipes and fittings for soil and waste installations on the external facade of buildings.

    Add to basket
  • LCC Soil Pipe Loose Door & Gasket

    LCC Soil Loose Door & Gasket

    £16.83 – £45.28 +VAT

    Premiere LCC Soil Range provides a comprehensive offering of traditional socket and spigot pipes and fittings for soil and waste installations on the external facade of buildings.

    Select options
  • LCC Soil Wire Baloon

    LCC Soil Wire Down Pipe Balloon

    £10.21 – £24.13 +VAT

    Premiere LCC Soil Range provides a comprehensive offering of traditional socket and spigot pipes and fittings for soil and waste installations on the external facade of buildings.

    Select options
  • LCC Soil Pipe Strap on Boss BSPT 100mm

    LCC Soil Strap on Boss BSPT 100mm

    £67.58 +VAT

    Premiere LCC Soil Range provides a comprehensive offering of traditional socket and spigot pipes and fittings for soil and waste installations on the external facade of buildings.

    Select options
  • LCC Soil Screwed Holderbat 100mm

    LCC Soil Screwed Holderbat

    £30.33 – £83.38 +VAT

    Premiere LCC Soil Range provides a comprehensive offering of traditional socket and spigot pipes and fittings for soil and waste installations on the external facade of buildings.

    Select options
  • LCC Soil Built in Holderbat 100mm

    LCC Soil Built in Holderbat 100mm

    £31.27 – £36.40 +VAT

    Premiere LCC Soil Range provides a comprehensive offering of traditional socket and spigot pipes and fittings for soil and waste installations on the external facade of buildings.

    Select options
  • LCC Soil Pipe Holdfast

    LCC Soil Holdfast Pipe Bracket

    £5.28 – £14.78 +VAT

    Premiere LCC Soil Range provides a comprehensive offering of traditional socket and spigot pipes and fittings for soil and waste installations on the external facade of buildings.

    Select options
Soil Installation
Soil Installation

Cold Jointing Method for Premier Soil Pipes

As an alternative method of jointing, without the use of a naked flame as in the traditional lead caulking method, we can provide the following cold jointing products:

• Caulking Cord
• CT1 black sealant

Soil Pipe Installation

Step 1.
Centrally align the pipe spigot within the socket and wet the cord.

Step 2.
Caulk this into the socket up to 30mm from the top. This will centralise the pipes and provide a backing for the top 30mm of the joint.

Step 3.
Fill the top 30mm with CT1 black sealant, apply using a skeleton gun.

Step 4.
When filled, smooth off level with the top of the socket, to provide a sealed joint and neat appearance. No further painting will be required if the pipes are black.

CT1 can be over painted if the pipes are a different colour.

Note: Each joint of a 4” pipe will require approximately 4 metres of caulking cord and a quarter of a tube of CT1.
Estimate usage on smaller or larger diameters pro-rata to pipe diameter.

Fixing Methods for Premier Soil Pipes

A typical fixing for eared soil pipes is 100mm large head pipenail, coach screws or other propriety fixing.
Fixing of uneared soil pipe is by a drive in spike.
Alternatively holderbats or earbands may be used for a moredecorative effect. All fixings are available from stock.
